Challenger CL10AV3 10,000 lb Adjustable Symmetric/Asymmetric — 2-Post Car Lift
Challenger CL10AV3 10,000 lb Adjustable Symmetric/Asymmetric — 2-Post Car Lift
The Challenger CL10AV3 is U.S.-manufactured in Louisville, KY — the only major brand with a domestic full commercial line. 12-year structural warranty is the market longest.
Specifications
- Rated capacity: 10,000 lb
- Configuration: Adjustable symmetric / asymmetric

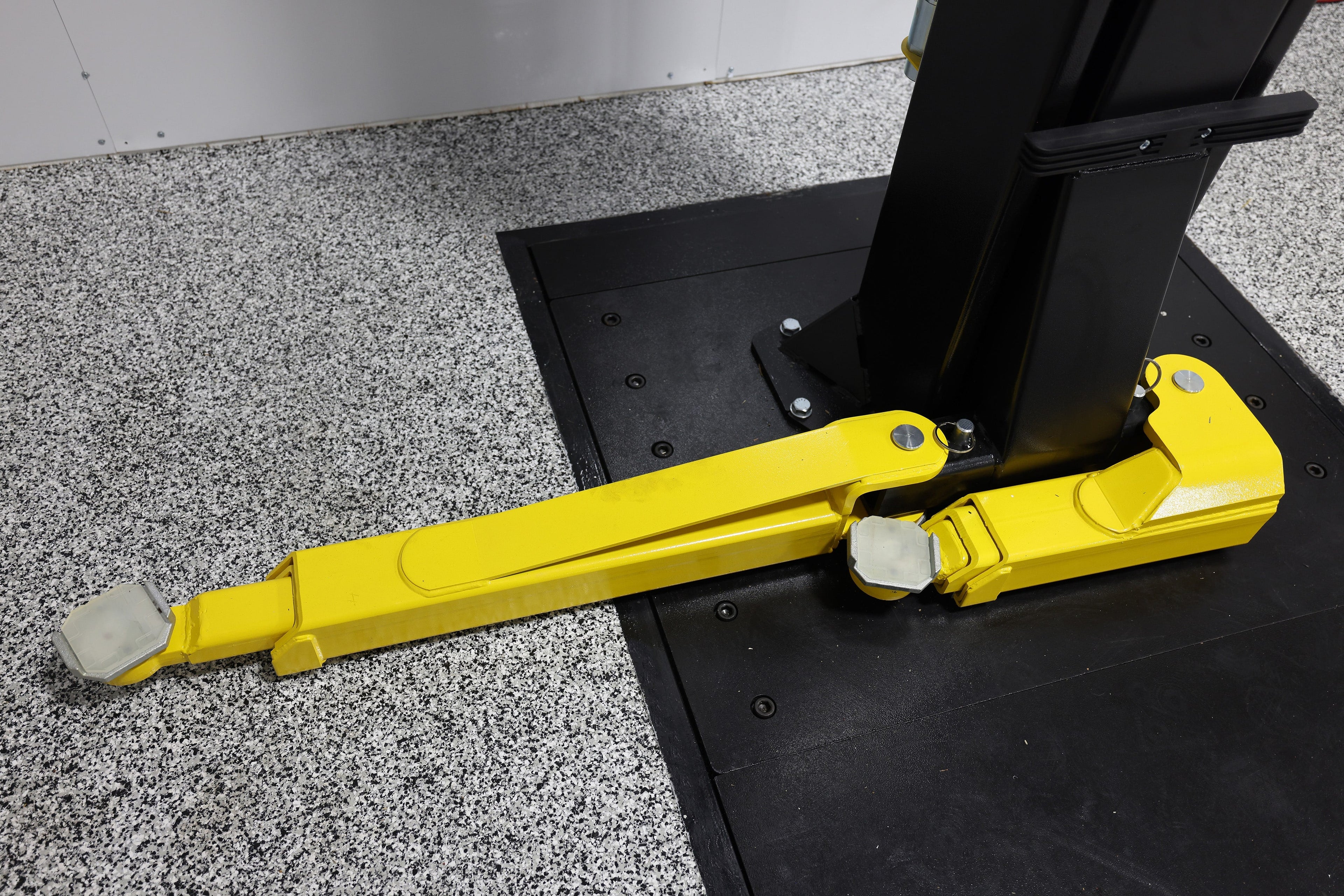

- Arm design: 3-stage arms
- Column height: 140"
- Minimum ceiling required: 144" (12 ft 0 in)
- Manufacturer SKU: CHA CL10AV3
Installation Requirements
- Concrete: 4 in / 3,000 PSI minimum (verify against factory install manual)
- Ceiling clearance: Verify your bay against the minimum listed above — text a photo of your bay to +1 (833) 736-7290 for pre-purchase verification before you order.
- Anchoring: Included wedge anchors (concrete anchor bolts)
Shipping
Freight-delivered curbside in 3–5 business days. Free shipping on the lift itself in the continental U.S. Add-ons under $200 ship UPS Ground separately.
0% APR financing: ~$673/month for 12 months with 90-day payment deferral through our lender partner. Apply in under 5 minutes at checkout.
Warranty
Challenger factory warranty applies — structural, hydraulic, and electric coverage per the manufacturer's terms. Consult the install manual for exact durations by component.
Questions? Call or text.
Text a photo of your bay (ceiling + concrete edge + width measurement) to +1 (833) 736-7290. We'll cross-reference your bay against the CHA CL10AV3 install manual and confirm compatibility before you order. Voice calls answered same day.
The verdict

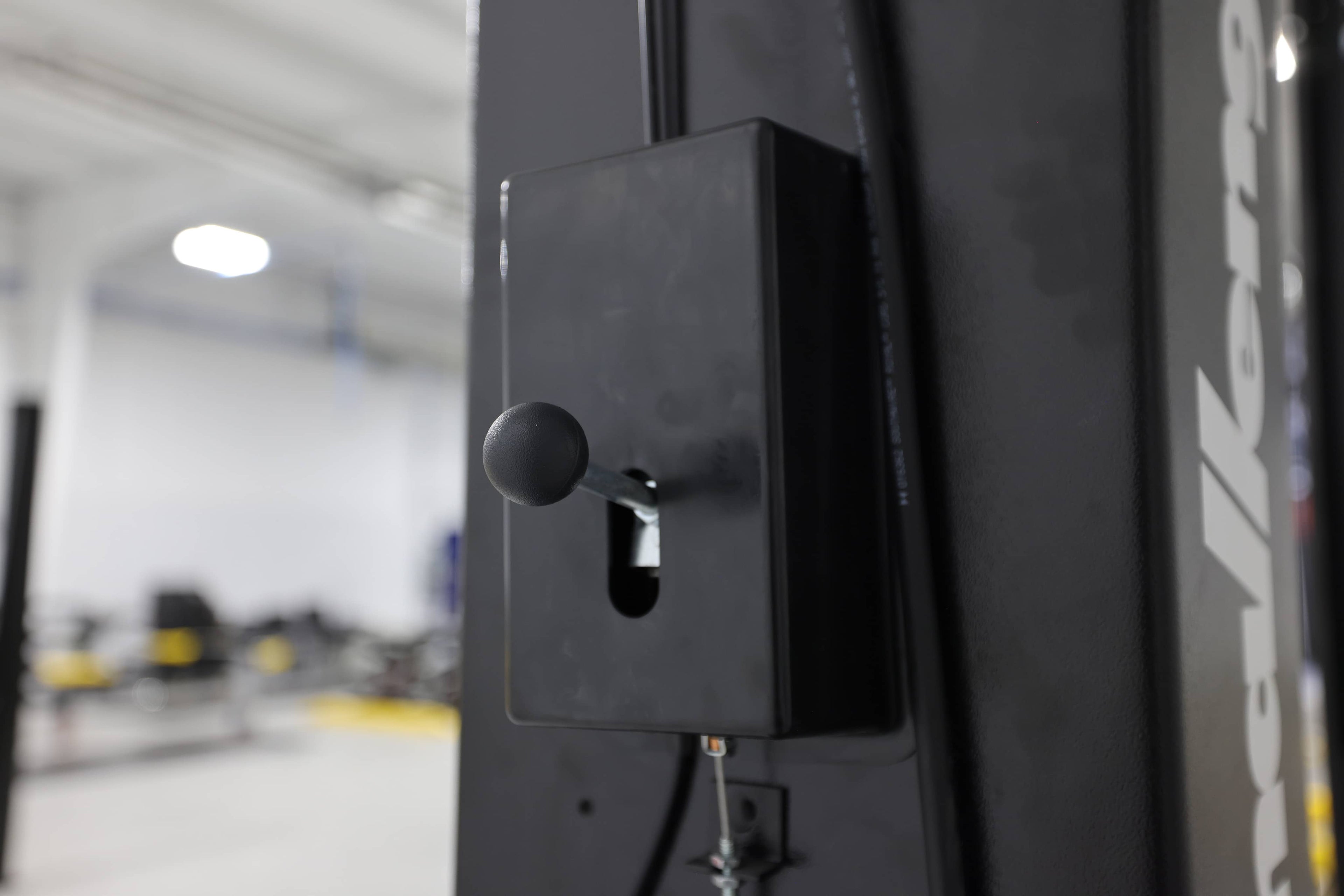

The CL10AV3 is the most versatile 10K 2-post lift Challenger makes. Versymmetric arm geometry handles cars through 3/4-ton trucks without the side-to-side fight. The ALI certification, single-point mechanical lock release, and 38-second standard rise make it the workhorse of independent shops, dealerships, and serious home garages. We've installed and serviced more of these than any other lift — and they last.
Best for
- Independent shops and dealerships servicing cars, SUVs, trucks, EVs
- Home garages with 12 ft minimum ceiling (14 ft recommended)
- Buyers who want a lift that lasts 20-30 years with proper maintenance
Don't buy if
- Your ceiling height is under 12 ft — see CLFP9 low-ceiling option
- You service Class 5+ trucks regularly — see CL12A or CL16
- You need extreme low-profile vehicle access — consider scissor lift instead
Install requirements
| Capacity | 10000 lbs |
| Minimum ceiling | 144 (Standard 11'8") / 165 (2' Ext) / 177 (3' Ext) |
| Concrete thickness | 4 inches minimum |
| Concrete PSI | 3500 PSI minimum, steel reinforced, 28-day cure |
| Electrical | 208-230V, 1Ph, 20A dedicated circuit |
| ALI certified | Gold Label — meets ANSI/ALI standards for commercial use |
Install manual
The manufacturer's install/operation manual (IOM) for this lift.
Download Install Manual (PDF)Compatible accessories
Add-ons that fit this exact lift model.
